Quattro 6" 150P Imaging Newtonian

SKU: S11205

  • Sale
  • Regular price $595.00

Yes, our inventory is accurate!

Free Ground Shipping Available (CONUS only)

  • 150mm aperture, 600mm focal length
  • Fast f/4 focal ratio
  • Parabolic borosilicate mirrors utilizing Sky-Watcher’s proprietary Radiant ™ Aluminum Quartz (RAQ™) coatings designed for imaging with 94% reflectivity
  • 11:1, dual-speed, 2-inch Crayford-style focuser
  • Oversized secondary mirror produces greater illumination for full-frame DSLR and CCD cameras
  • Primary and secondary mirrors are both collimatable
  • Included coma corrector is designed to match the 600mm focal length, ideal for APS-C sensors and smaller
  • Imaging focal ratio with included coma corrector/reducer is f/3.45, focal length is 518mm

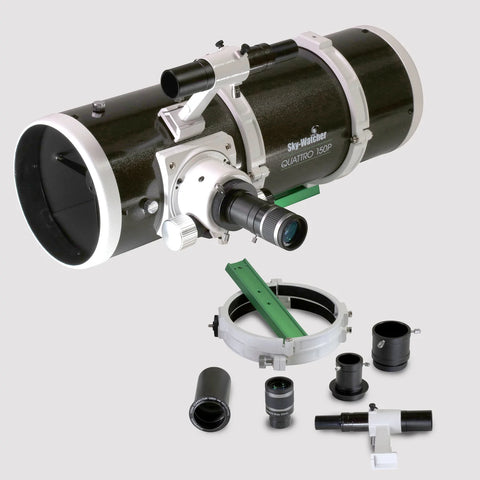

  • Includes tube rings, mounting plate, eyepiece adapters, 70° Ultra Wide 22mm eyepiece, coma corrector/reducer, and a 6x30 finderscope

The Quattro imaging Newtonian is an affordable, large aperture astrograph, ideal for users searching for a fast-imaging system that will work for both astrophotography and visual astronomy. Boasting a swift f/4 focal ratio, this astrograph can produce an exposure 6x faster than the average 8-inch f/10 Schmidt Cassegrain telescope (or 8.4x faster with the included coma corrector/reducer). Although designed as an imaging optical tube, these Newtonians also produce bright and detailed viewing for visual astronomy.

Like all Sky-Watcher reflectors, the Quattro Imaging Newtonian features borosilicate mirrors coated with Sky-Watcher’s proprietary Radiant ™ Aluminum Quartz (RAQ™) coatings, producing 94% reflectivity. The tube is constructed with rolled steel, then coated with Sky-Watcher’s signature glossy metal-flake Black Diamond finish. The OTA uses an oversized secondary mirror providing greater illumination for DSLRs and CCDs using full-frame sensors, and an included coma corrector/reducer for those who want to take their imaging to the next level.

Included with the Quattro Newtonian is a 11:1 dual-speed 2-inch Crayford-style focuser, 1.25 and 2-inch eyepiece adapters, a 6x30 finderscope, tube rings, V-style dovetail plate, a 70° Ultra Wide 22mm eyepiece, and coma corrector/reducer.

Optical Info
Optical Design Newtonian
Mirror Coatings Protected Aluminum coatings with 94% reflectivity
Glass Type Borosilicate
Primary Aperture (mm) 150mm
F/Ratio 3.9
Focal Length (mm) 600
Secondary Diameter 64mm
Secondary Obstruction (by diameter) 42%
Secondary Obstruction by Area 18%
Observational Info
Dawes Limit 0.77
Rayleigh Limit 0.93
Limiting Mag. 13.36
Minimum Magnification 21x
Maximum Magnification 295x
Light Gathering (compared to next size down) 40% (compared to 5" telescope)
General Info
Focuser 2" Dual Speed Crayford
OTA Length (Retract/Ext.) 22"
OTA Outer Diameter 7.25"
OTA Weight (with accessories) 12.6 pounds
Included Finder 6x30 Finder
Included Diagonal No
Mounting Accessories Mounting Rings/Dovetail
Included Eyepieces 22mm 70 degree 1.25"
Included Case No
Corrector Yes
Barcode: 050234112055
