ZWO

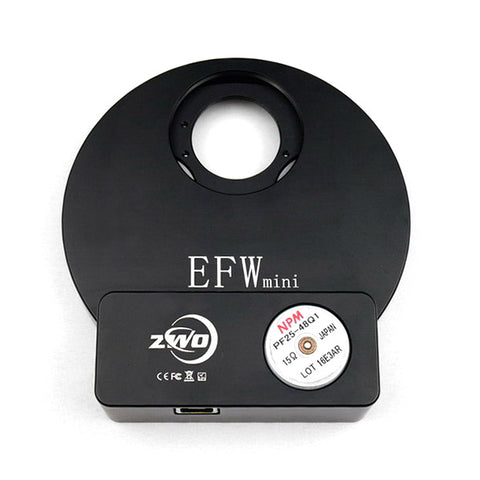

ZWO 5-position EFW Mini (5 x 1.25″ and 5 x 31mm)

SKU: ZWO-EFW-MINI


  • Sale
  • Regular price $199.00

Yes, our inventory is accurate!

Qualifies for Free Ground Economy Shipping (CONUS Only)


Description:

The smallest and most lightweight 1.25″ Electronic Filter Wheel in the world!

300g ONLY! Smaller than your hand!

The body is CNC machined from a full block of aircraft-grade aluminum.

Very thin design, 20mm ONLY

The step motor is the heart of the EFWmini, which is made by NPM from Japan. You can trust its quality and reliability.

Supports both 5*1.25″ filters or 5*31mm filters

The Electronic Filter wheel can be rotated in both counterclockwise or clockwise direction for filter selection.

Only one USB Cable is enough to power up the EFW, the max power consumption is around 120ma@5V, so you can connect it from the USB 2.0 hub of our cooled cameras.

The distance between the filter and sensor is around 10mm when you connect it to ASI1600.

So 1.25″ filters won’t have vignetting up to F5 focal ratio scope and 31mm filters won’t have vigentting up to F2 lens

Our new RGBL filters are recommended to work with ASI1600, it will offer nearly 1:1:1 RGB color balance.

What’s in the box?

  1. EFWmini body
  2. 1.25″ cover
  3. T2 nosepiece
  4. 1.25″ holder(with cover and 2 screws)
  5. T2-T2 adapter(male)
  6. A bag of filter masks
  7. USB2.0 2m cable
  8. Phillips screwdriver
  9. A bag of M2 screws
    Barcode: 0713831221383
