ASI220MM Mini (Mono)


  • Sale
  • Regular price $249.00

Yes, our inventory is accurate!

Qualifies for Free Ground Economy Shipping (CONUS Only)

  • This guide camera has nearly double the sensor area of the ASI120MM Mini.
  • 1/1.8" SC2210 sensor (7.68 mm x 4.32 mm).
  • 4μm pixels in a 1920 x 1080 array with low read noise.
  • 12-bit ADC and the QE peak is above 90%.


The ASI 220MM Mini makes it easier to acquire guide stars, compared to the ASI 120MM,  because of the 220MM's larger image sensor, high sensitivity and low read noise.

Like other cameras in ZWO's lineup of "Mini" models, it has a long barrel to allow easy positioning in a guidescope. This also allows a bit of extra adjustment for focus on your guidescope, as necessary.

USB2.0 Port & ST4 Port

USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)

#USB-C to USB-A cable is required.

ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

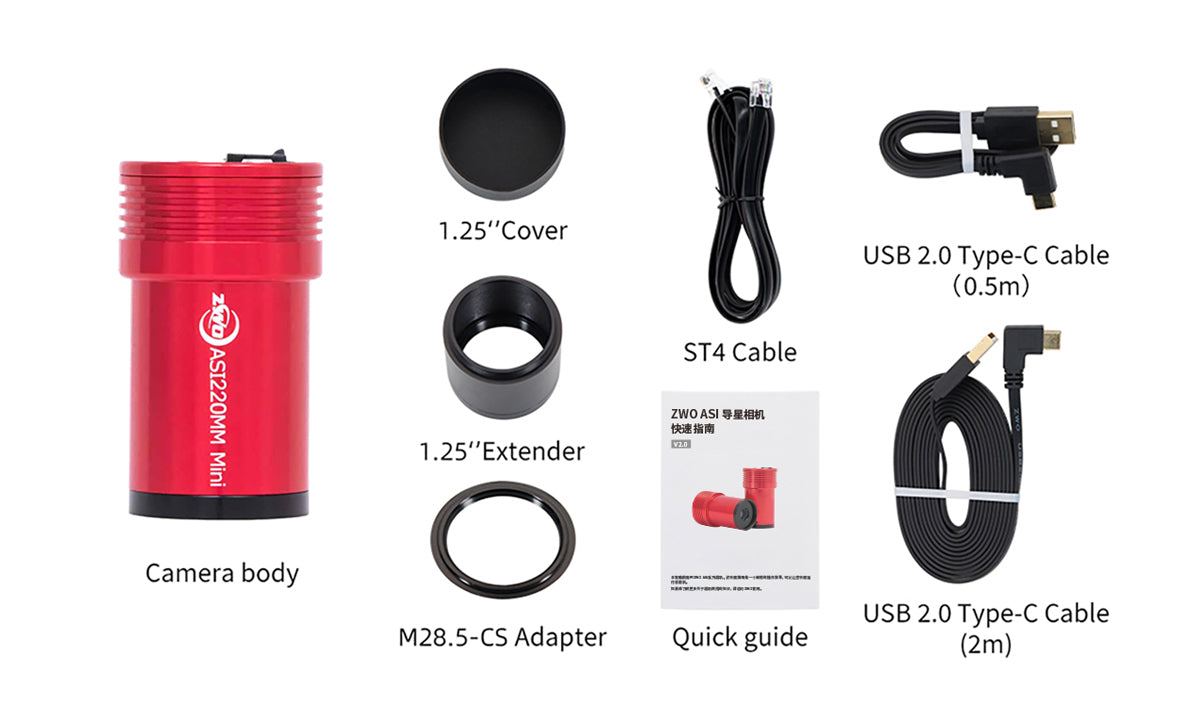

What's in the Box


    Barcode: 0748305559525
