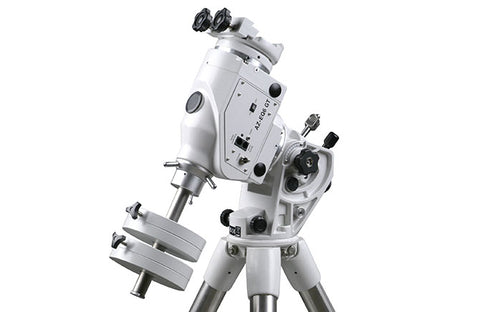

The Sky-Watcher AZ-EQ6 SynScan mount gives optimal stability and pointing accuracy for a wide variety of heavy professional photo and video equipment. It is a hybrid mount with alt-azimuth capability for general use and equatorial capability for astrophotography use. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestial objects with its database.
AZ-EQ6 SynScan is capable of carrying heavy-duty photographic equipment for professional shooting and video recording. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).
Freedom Find™ - tracking made easy!
With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.
German Equatorial/Alt-Az dual mode mount
Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
Belt drive - Super smooth PE curve. Low backlash, silent slewing.
DSLR Electronic Shutter Release Port for batch exposures of astrophotography.
Include two dual-fit (45mm/75mm) saddle for mounting two telescopes.
New motor controller with higher torque and accuracy.
Driving Resolution: Approximately 0.14 arc seconds
PEC control in EQ mode
Alignment methods: 1, 2, or 3-star alignment (EQ) / brightest star or 2-star alignment (AZ)
Telescope Connection: 2 x dual-fit saddle plates supplied accepting 45mm & 75mm dovetail bars
RA/DEC Worm Gears: D=92.5mm, 180 teeth, brass
RA/DEC Axes: D=40mm, steel
Latitude Adjustment Range: 10° to 70° (EQ), 90° (AZ)
Azimuth Adjustment Range: About ± 9°
|Tripod Height||127 cm ( 50")|
|Tracking Rates||Sidereal / Solar / Lunar rate|
|Guiding Speed||from 0.125x, 0.25x, 0.5x, 0.75x, 1x|
|Mount Type||EQ/Alt-AZ Dual Mode|
|Counter Weight||2x 5 kg|
|Accessory Tray||Large wall to wall|
|Motor Drive||1.8° Hybrid Stepper Motor|
|GOTO System||SynScan Hand Control|
|Tripod Weight||7.5 kg, 2" steel tripod|
|Shipping Weight||21kg + 20 kg|
|Shipping Dimensions||118x28x29cm3; 53x52x32 cm3|
|Power Supply||DC11~16V 4A|
|Payload Capacity||20 kg (counterweight excluded)|
|Tracking Modes||Alt-azimuth / Equatorial mode|
|Slewing Speed||up to 4.2°/sec (800x)|
