Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod
Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod

Rowan

Rowan AZ100 mount head w/encoders, dual motor drives, dual saddles, pan/tilt handle, on Berleback UNI-18 tripod

SKU: U2508-DD-ROWANAZ100


  • Sale
  • $3,200.00
  • $5,312.00
 NOTE: THIS ITEM CANNOT BE SHIPPED
STORE PICKUP ONLY
SELECT PICK UP AT CHECKOUT

SHIPPING NOT AVAILABLE - In Store Only

Not Returnable Please note that this product is not returnable.

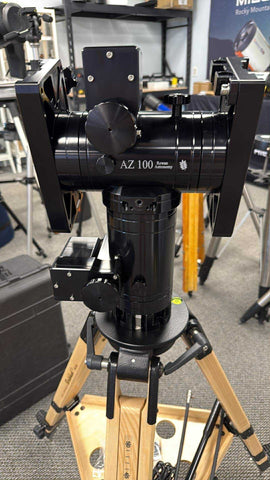

You've heard of it, and here it is.  This is a Rowan AZ100 mount head in excellent, pristine condition.  It is smooth and quiet.  And boy, this one is fully loaded.

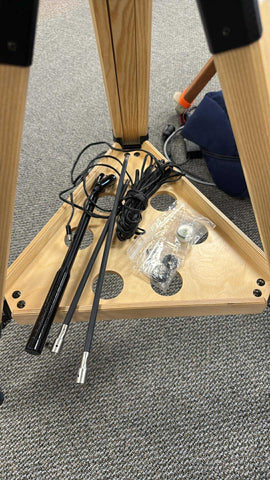

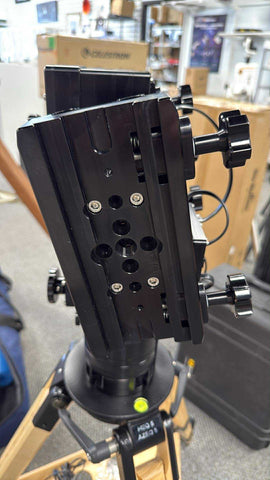

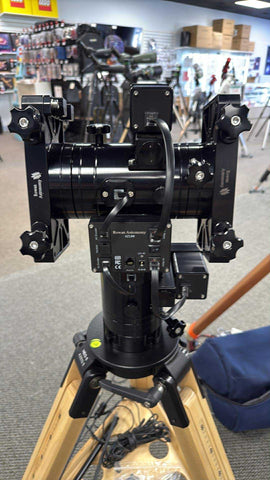

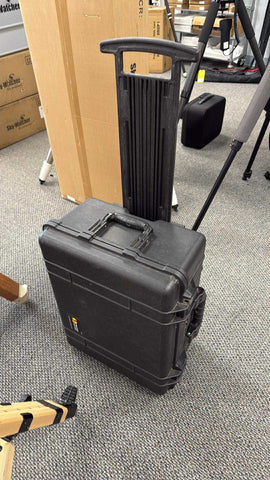

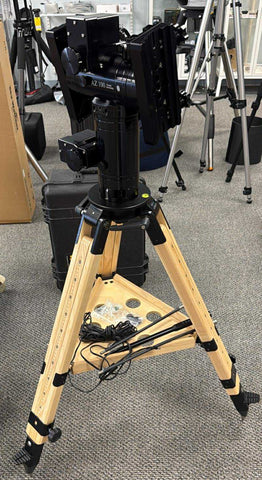

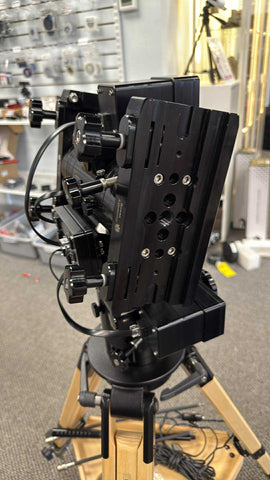

It's got dual encoders and dual motor drives (a $3445 value), dual saddles (a $426 value), a pan/tilt handle (a $65 value), dual slow motion controls (a $133 value).  It comes on a 200mm anodized pier (a $243 value) and a lovely wooden Berlebach UNI-18 tripod (a $720 value).  It also comes with a Pelican 1560 case for the mount head (a $280 value).

That's over $5300 worth of equipment for just $3200.  It looks practically brand new - you save big!



We do not have the packing boxes for this, so this is available for in-store pickup only.



Details

AZ100 with encoders and Goto motor System.
CNC machined and black anodised finished and fitted with stainless steel hardware.
Specifications includes an 80.0 mm diameter 7075 aluminium wheel gear and brass worm gear in adjustable worm block.
32mm diameter 7075 aluminium axis shafts supported in high quality ball and taper bearings.
Features included adjustable friction clutches on both axis and 360 degree slow-motion controls allowing simultaneous push-to and slo-mo tracking.
Slow motion hand knobs fitted to worm shafts. Flexible slow motion cables can be ordered separately.
Both slow motion controls remain in alignment with the observer at all times.
Load capacity is 15-20 kg each side depending on scope length.
Mount weight : 10kg
Mount base has M12 tapped hole to attach to tripods.


Available accessories
Nexus DSC Pro with WiFi.
DSC shelf - fits Nexus.
Losmandy 'D' section saddle. 200m long with 2 clamps.
Dual Losmandy / Vixen section saddle. 200m long with 2 clamps. 16mm central thread for counter weight shaft.
Altitude adjusting plate - When using a 2 scope setup, both scopes can be set to the same pointing position.
Y-Axis balance plate- Allows good balancing when using a bino-viewer or heavy eyepieces.
3.75 Kg stainless steel counterweight 125mm diameter. 25mm hole.
Counterweight shaft. 25mm diameter Stainless steel with M16 thread for attachment direct to a Rowan saddle.
Counterweight shaft and mounting flange. Select this option if you're not using a Rowan saddle
