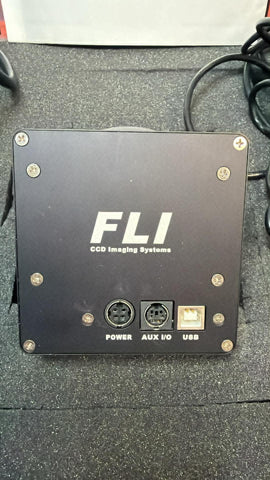

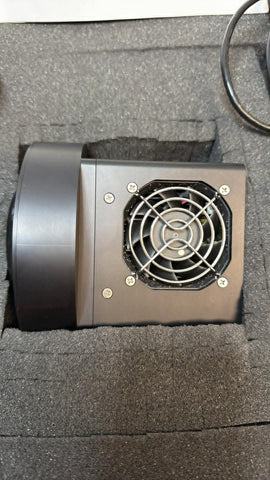

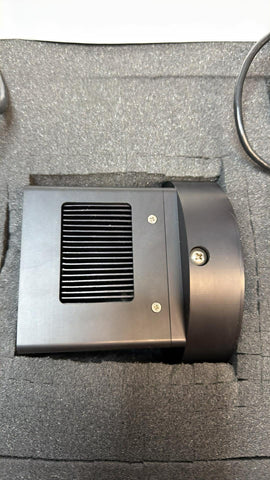

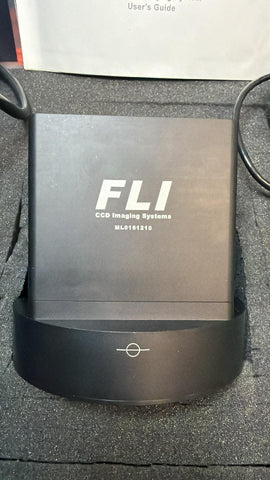

This is a 15-year-old Finger Lakes DSO camera. It was way ahead of its time back then, and still packs a wallop of a punch: 11 megapixels of CCD goodness, 9 micron pixel size, and up to 55 degrees Celsius of active cooling! The complete specs are below.
It is in excellent shape, clean both inside and out. It's an oldie but a goodie.

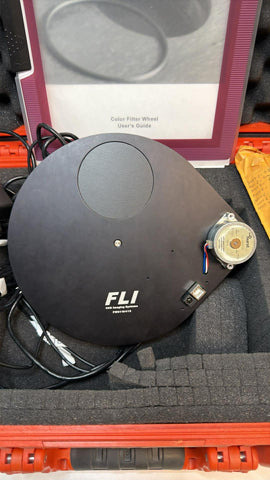

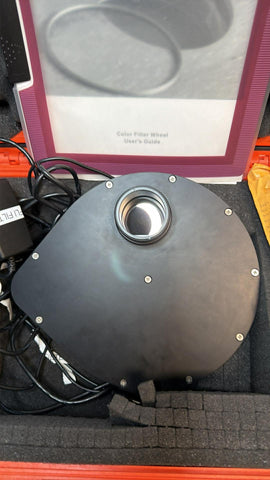

This includes the CFW 2-inch 7-position filter wheel, which already has a complete set of LRGBSHO filters installed. Unfortunately, the filters are not marked, so we don't have any additional information on the branding, bandpass width, etc.

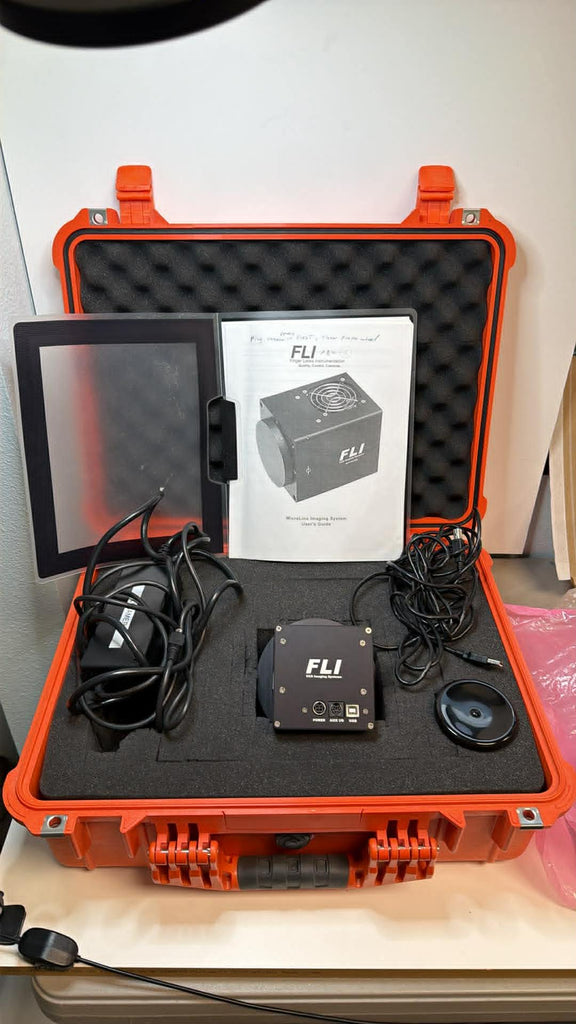

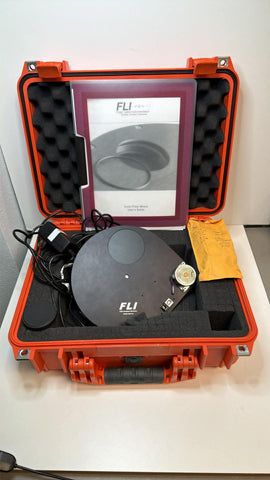

This also includes both of the original manuals for the camera and filter wheel, and all the power and connection cords. The camera and filter each come in their own nice Pelican cases.
Please call with any questions about this setup. There are no returns on this item.
Specifications
Each component of the MicroLine camera is designed and manufactured for a long life in the most demanding conditions. MicroLine download speeds are fast yet maintain the 16-bit resolution necessary to produce high quality images.
Sensor Type Interline
Transfer CCD
Active Pixels 4008 x 2672
Pixel Size (microns) 9 x 9 µm
Imaging Area (Diagonal) 36.1 X 24 mm (43.4 mm)
Full Well Capacity (e-) 60,000 electrons
Cooling Method Air (Optional liquid) 0.004 eps at -35C
Interface USB 2.0
Dynamic Rang 76.2 dB
Lens Mount Optional Nikon F-mount or Canon EOS
Anti-Blooming 1000X
Technical Data Sensor ON Semi KAI-11002
Max. Cooling (Air) 55°C below ambient
Shutter Optional 65 mm
Dark Current (typical) 0.004 eps at -35C
Digitization Clock 2 MHz and 12 MHz
Typical_Readout Noise 9 e- at 2 MHz; 14 e- at 12 MHz
Weight 3.96 lbs (1.8 kg)
Environment -30°C to 45°C | 10% - 90% Relative Humidity
12V (100-240V AC to 12V DC power supply included). With TEC off: <1A. TEC at 100%: 4.4A. Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A. Power
