SVBony

Used SvBony SV305 Pro Guide Camera

SKU: U2505-KB-F9198B


  • Sale
  • $69.95
  • Regular price $185.00

Qualifies Towards Free Ground Economy Shipping (CONUS Only) For Most Orders Of $149 Or More

Not Returnable Please note that used items are not returnable.

Condition:

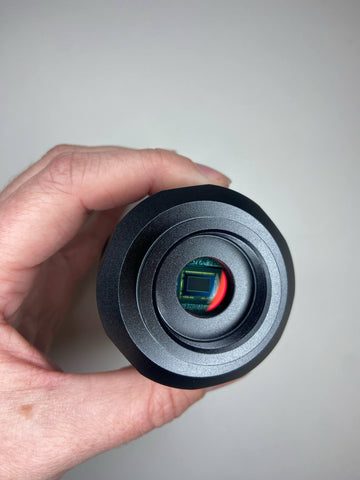

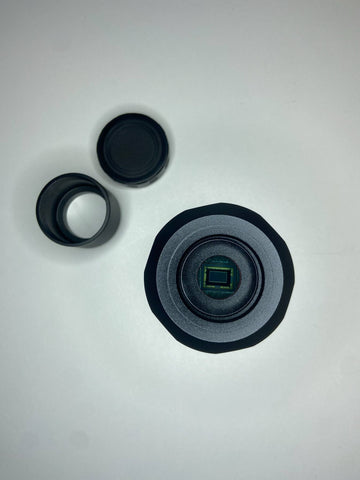

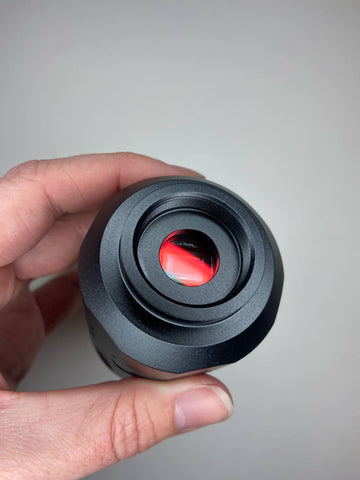

This is a used SvBony SV305 Pro guide camera in excellent condition. The sensor is clean and the outer body is free of any marks. Everything shown in the photos is what is included, this does not include a box.



Description:

  • ST4 Guiding; SV305 Pro camera is designed with ST4 guiding port, supporting the PHD2 software, and works with ASCOM plate form;
  • 1ms to 30min long exposure; Long exposure can reach 30 minutes, you can use it for planetary imaging, lunar imaging and some bright deep space objects imaging;
  • Back-illuminated CMOS Sensor; The SV305 Pro uses an extremely sensitive IMX290 CMOS sensor, this sensor has very high QE and very low 0.7e- read noise, which improved sensitivity in the visible-light and near infrared light regions for industrial applications;
  • 128MB DDR Buffer; This buffer also allows a slower computer with USB 3.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also makes it possible to run multiple cameras using one computer without USB transfer problems;
  • Any Area ROI Support; A smaller region of interest ROI is read out from the sensor, leaving the image scale of the object being imaged unchanged. Allow arbitrary resolutions to be set.

Brand SVBONY
Model SV305 Pro
Sensor 1/2.8" CMOS Color
Sensor Model SONY IMX290
Pixel Size 2.9µmx2.9µm
 Resolution

2MPixels(1920*1080@120FPS)

360*240@260fps

USB Type USB3.0
Shutter Electronic Rolling Shutter
Exposure Time 1ms~30min
Gain Automatic/Manual
Maximum Frame Rate 120FPS(1920*1080)
ADC 10 bit/12 bit Out 8 bit/12 bit
Filter IR CUT filter
Support OS Windows, Linux, Raspberry Pi & Mac OS
Support Telescope Telescope with 1.25'' diagonal base hole
Power Consumption 230mA@5V
Cable Length 2m
Working Humidity 30%-80%
Storage Humidity 20%-90%
Operating Temperature -10°C~50°C
Storage Temperature -20°C~60°C
Weight 135g
Package Length*Width*Height Ø*49.5*65mm
