Used Starizona Hyperstar 6 v4 plus Starizona modular filter slider

SKU: U2608-RH-HS4-6


  • Sale
  • $375.00
  • $647.00

Yes, our inventory is accurate!

Qualifies for Free Ground Economy Shipping (CONUS Only)

Not Returnable Please note that used items are not returnable.

Condition:

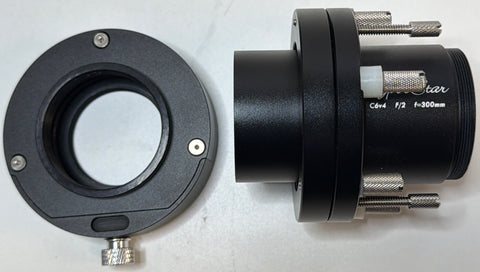

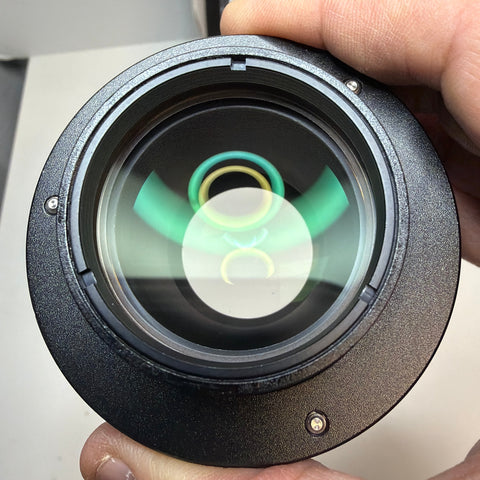

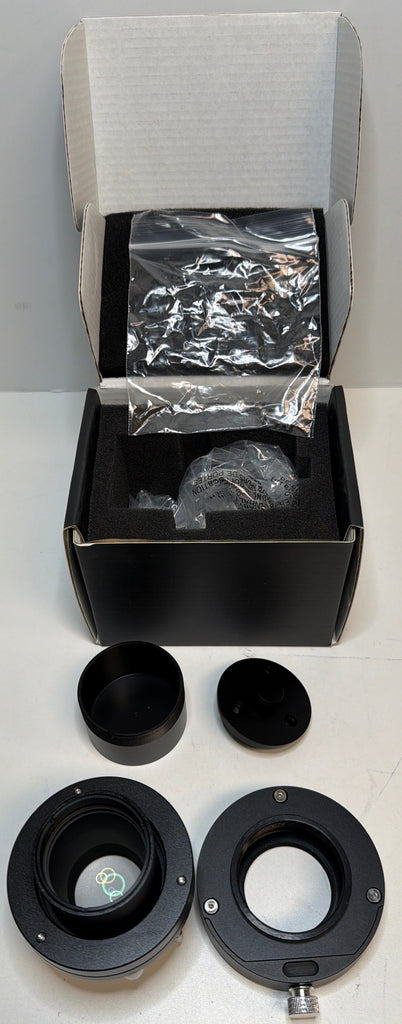

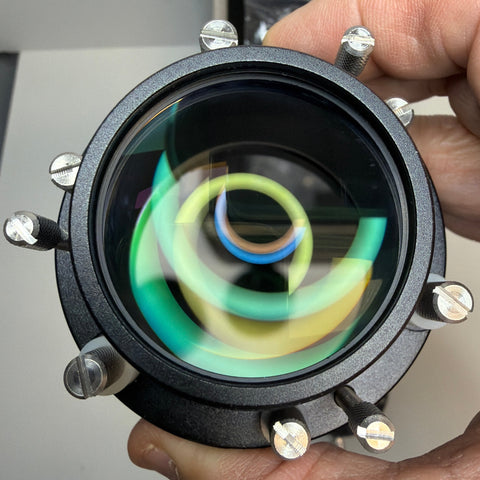

This is a Hyperstar 6 v4 for a 6" SCT. It is in excellent optical quality, with no sleeks, smudges, or scratches on the glass. This includes the Hyperstar itself, the secondary mirror holder, secondary mirror mounting plate with knob, box and dust caps.

This also includes the Starizona modular filter slider, a $149 value.

This is $647 worth of gear for just $375!   At that price, it won't last!





Description:

HyperStar is based on Celestron's innovative Fastar feature. This feature allows the secondary mirror to be removed from Celestron's Schmidt-Cassegrain telescopes. By mounting the HyperStar lens assembly in place of the secondary mirror, a CCD camera can be mounted at the front of the telescope allowing for a wider field of view and much faster imaging.

The HyperStar lens assembly works with a variety of cameras. Different cameras require different adapters, however. One adapter is included with the HyperStar lens. Please specify the camera being used when ordering.

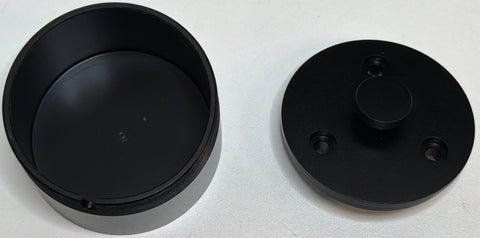

A holder is included for safe storage of the secondary mirror while imaging.

The HyperStar systems allows the telescope to operate at a focal ratio of f/2, an incredible 25 times faster than the standard f/10 focal ratio! Images can be obtained in just seconds!

Specifications

  • Focal Ratio: f/2
  • Focal Length: 300mm
  • Maximum Usable Sensor Size: 28mm Diagonal
  • Camera Adapter Threaded for 2" Filters
  • Backfocus (from mounting thread to focal plane): 39.8mm (1.567")
  • Length (without camera adapter): 3.3"
  • Diameter: 2.8"
  • Weight: Less than 1 lb.



Starizona Modular Filter Slider

If you're ordering a Modular Filter Slider to use with your HyperStar, you will also need to purchase a Filter Slider Adapter for your camera of choice to reach the correct backfocus and attach the Modular Filter Slider to your HyperStar.


The Modular Filter Slider improves on our original Filter Slider design by allowing customization through interlocking modular top and bottom plates, making it more adaptable to various optical systems and by adding better protection against light leaks.

New Modular Filter Slider Features
  • New and improved filter drawers and interlocking threaded plates improve light leak prevention
  • All threaded plates use common, standardized threads.
  • All Filter Drawers now include removable knobs.
  • Easily interchangeable top and bottom plates for maximum flexibility.
    • Male M42
    • Male M48
    • Male M54
    • Female M42
    • Female M48
    • Female M42 (+1mm height)

New, Thicker Plates Now Available

To make our Modular Filter Slider easier to incorporate into common optical trains, we have made thicker female threaded plates available.  These plates are 3.5mm thicker than our usual plates, making the total height of the Modular Filter Slider 21mm when a thicker plate is selected.

The new plate options are:

    • Female M42 (+3.5mm height)
    • Female M48 (+3.5mm height)
    • Female M54 (+3.5mm height)

Specifications:

• Modular Filter Slider height: 17.5mm (21mm if you select a thicker female plate)
• RASA8 Filter Slider height: 19.5mm
• Modular Filter Slider diameter: 78.5mm or 3.09"
• M42 Male/Female Threads: 42mm x 0.75
• M48 Male/Female Threads: 48mm x 0.75
• M54 Male/Female Threads: 54mm x 0.75

What's included:
  • The Modular Filter Slider Body
  • 1x Top Threaded Plate
  • 1x Bottom Threaded Plate
  • 1x Filter Drawer w/ Knob
  • 6x Screws to attach the Top and Bottom Plates
  • 1x Allen wrench

    Important notes about The Original Starizona Filter Sliders:
    1. Starizona's Original Filter Slider Complete has been discontinued and will not be sold anymore. Starizona will still support the previous Starizona Filter Slider by making drawers and filter slider replacement tops available for the foreseeable future. Please contact Starizona if you need help adapting your Original Filter Slider Complete.
    2. Original Filter Slider Filter Holders and Top Plates are NOT compatible with the New Modular Filter Slider. Likewise, the new Modular Filter Drawers, Top Plates, and Bottom Plates do not work with the Original Starizona Filter Slider.

    Instructions
