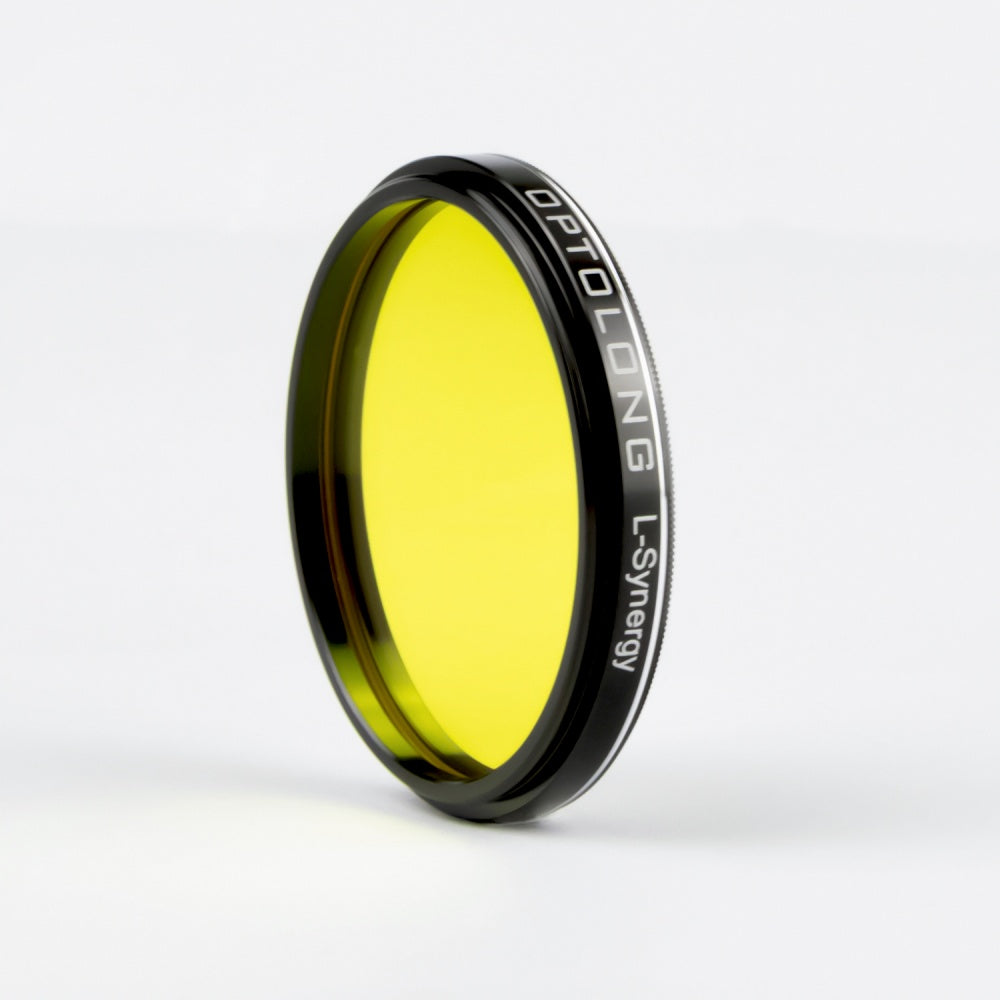

Optolong L-Synergy Filter

Put simply, the L-Synergy filter is best used by more advanced users who want to shoot nebula images in a true Hubble "SHO" palette with their one-shot color camera.

To do this, you'd combine two  image stacks—one exposed through the L-Synergy, and the other exposed through Optolong's L-Extreme filter.

Opotlong L-Synergy is a dual 7nm narrowband filter compatible with DSLR cameras, color CMOS sensors, and CCD cameras, supporting telescope systems with F-ratio of F3.3 or above (i.e., slower systems). Its key advantage lies in enabling astrophotography amateurs to capture exceptionally detailed emission nebulae even in light-polluted environments.

After years of technical refinement, it has been optimized to minimize bright star halos while isolating all emission lines except SII and OIII, achieving maximum effective transmission.

Optical Design

By analyzing the spectral characteristics of both celestial emission lines and light pollution, L-Synergy selectively preserves the SII and OIII nebula colors while filtering out the majority of light pollution. Specifically designed and optically optimized, L-Synergy maintains consistently high transmission across both SII and OIII bands. This ensures users can precisely capture the target nebula emissions, delivering optimal astrophotography results.

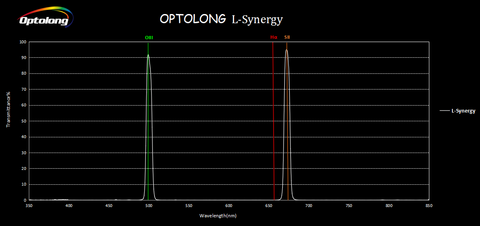

*We will continue to optimize the product based on test results. This curve does not represent final product specifications.

Coating Technology

·Multi-layers anti-reflection coating

·Non-cementing optical substrate coating

·Optolong filter adopts precision coating based on Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change.

·Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band.
